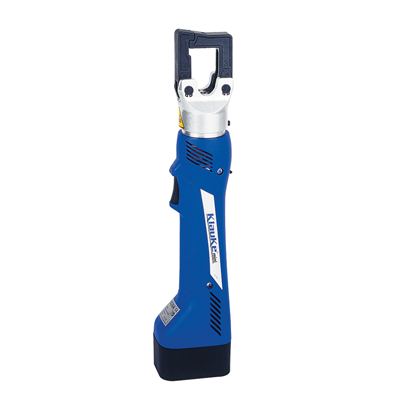

With a slim crimping head, making it ideal when space is critical.
Supplied complete with a charger, 2 batteries and 10 Hex Die Sets for copper lugs.
Characteristics:
- Closed head, flip top style, rotatable.
- Simple and safe: one-button operating concept for controlling all tooling functions.
- Ergonomic 2-component housing with soft linings for comfortable and safe one hand operation.
- Effortless working thanks to low weight.
- Simple and safe: Automatic retraction when operation is complete.
- Maintenance control by LED.
Technical Information:
- Based On: Klauke EK 35/4 ML Battery Powered Crimping Tool
- Crimping Force: 35kN
- Stroke / Opening Width: 9mm
- Crimping Range: 6-150mm²
- Crimping Cycle: 3s to 4s (depending on cross-section)
- Number Of Crimps: approx. 145 at 120mm² Cu
- Battery Voltage: 10.8V
- Battery Capacity: 1.5 Ah, Li-Ion
- Charging Time: approx. 40min
- Weight Incl. Battery: 1.6kg
- Ambient Temperature: -10°C up to +40°C
